Description
- Usage: Timer Switch
- Theory: electronic
- Model Number: GRT8-B OFF DELAY TIME RELAY
- Type: Mini
- Brand Name: GEYA
- Origin: Mainland China
- Certification: CE,RoHS
- Product Name: Single Function Time Relay
- Function: Delay off Delay on Time Relay
- Voltage: AC230V OR AC/DC12-240V
- Output Contact: 1SPDT OR 2SPDT
- Rated Current: 16A
- Rated Frequency: 50/60Hz
- Time Range: 0.1s-10days, ON, OFF (in 10 alternate)
- Certificate: CE CB ROHS
General

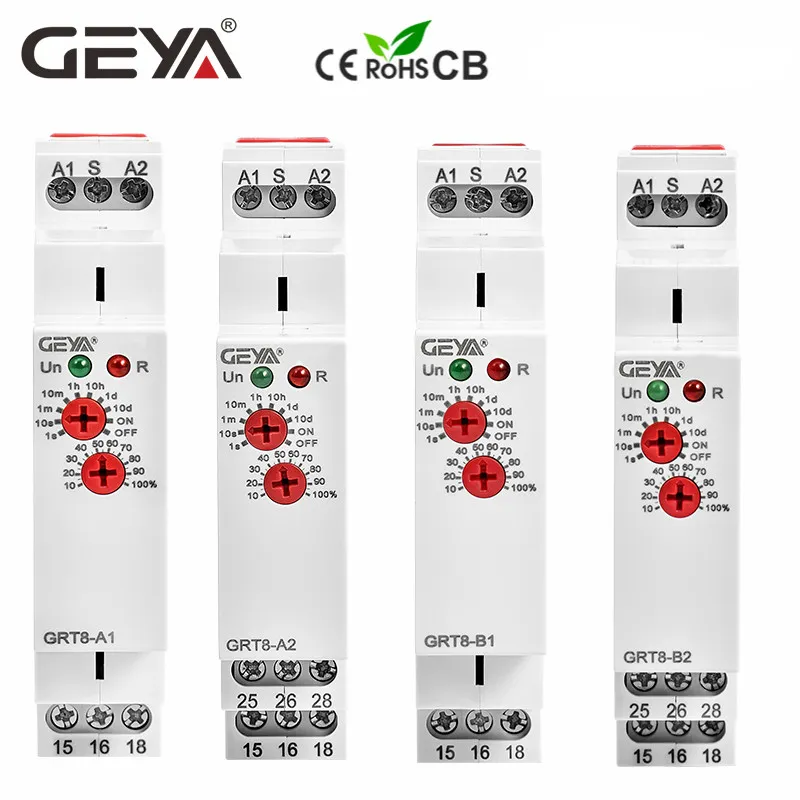

– GRT8-A Delay on Function

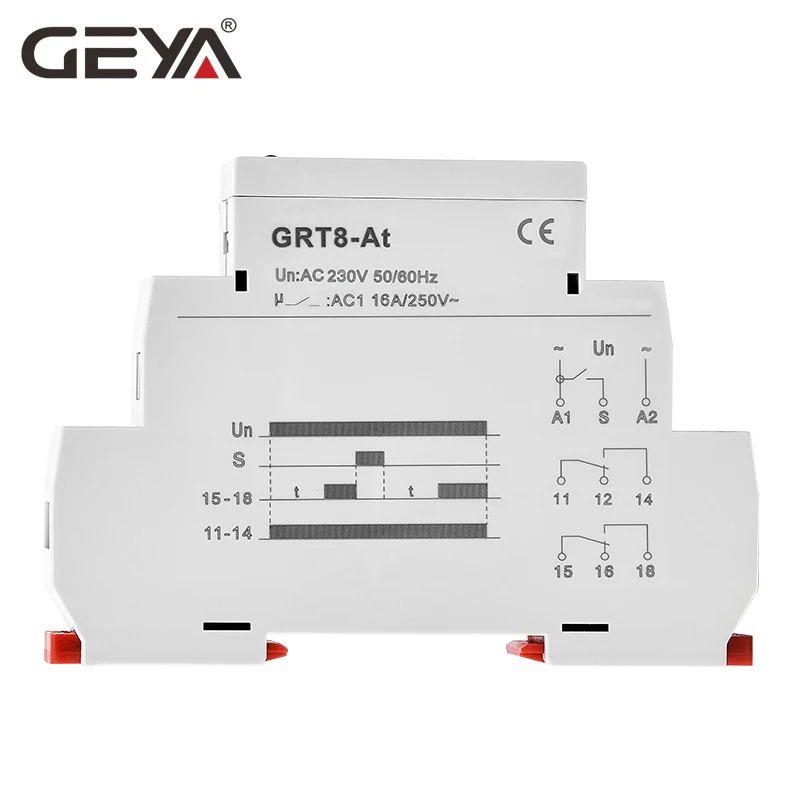

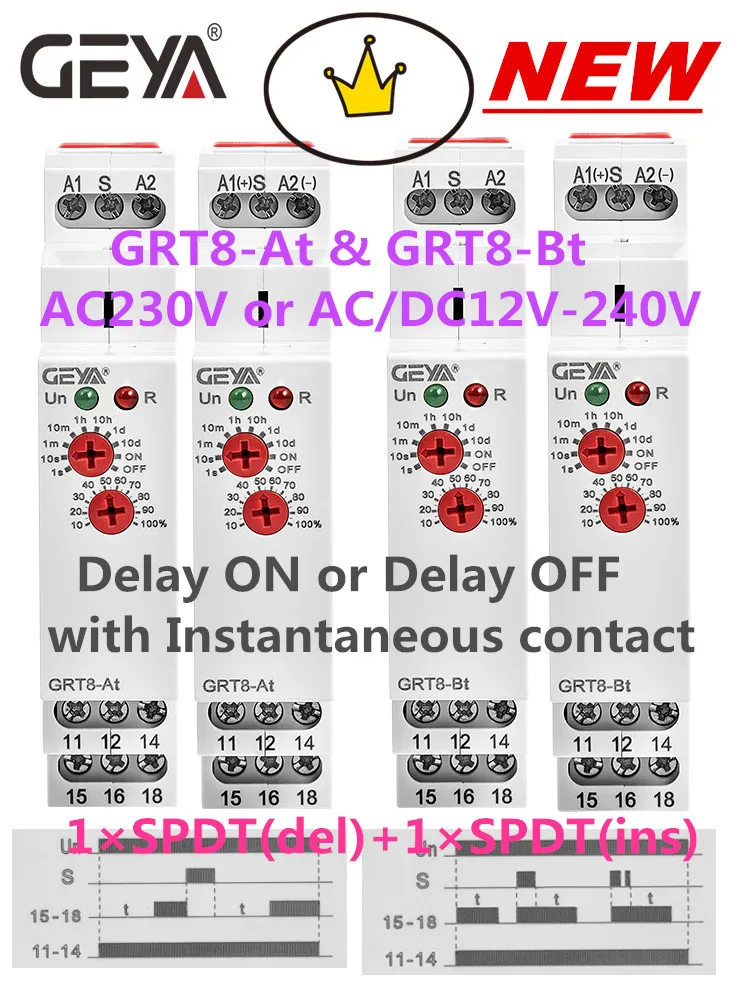

– GRT8-At Delay on with Instantaneous contact
– GRT8-B Delay off Function

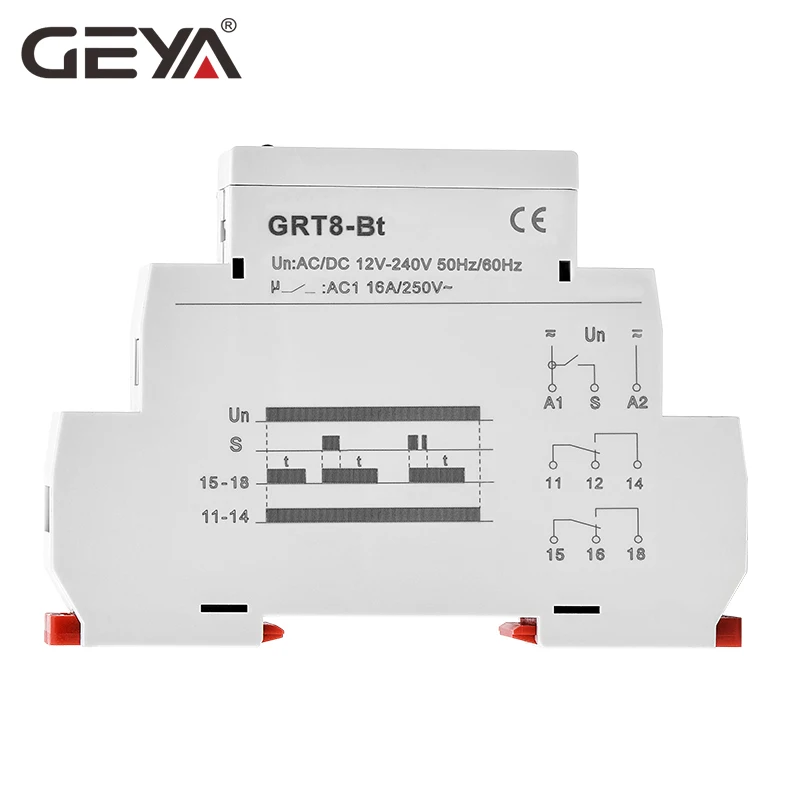

– GRT8-Bt Delay off with Instantaneous contact
Applications
-Suitable for applications where function and time requirements are known.
-Time switch, possible to be used for pump decay time after switching heating off, switching of fans.
Function Features
– Support Wide Range Voltage: AC/DC12-240V or AC230V
– Output Contact: 1SPDT or 2SPDT

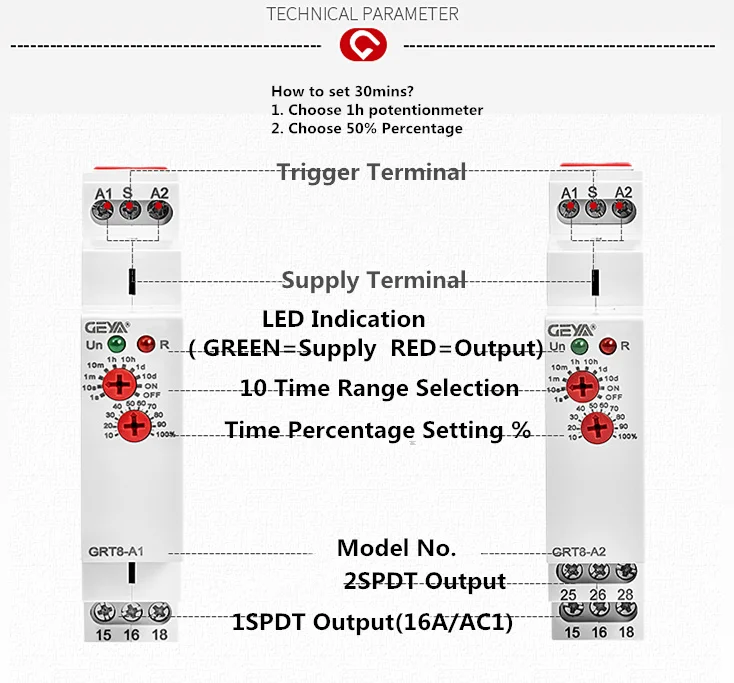

– Time scale 0.1 s – 10 days divided into 10 ranges,time setting by a potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day,1-10day, only ON, only OFF
– Relay status is indicated by LED.
-1 MODULE 18mm,DIN rail mounting.
Technical Data
